HP Z8 FURY G5 WORKSTATION

CONFIGURE NOW
CONFIGURE NOW

TURN-KEY
AUTODESK
FLAME
WORKSTATIONS

  • HP Z8 Fury G5 Workstation
  • HP Z8 Fury G5 Workstation
  • HP Z8 Fury G5 Workstation
  • HP Z8 Fury G5 Workstation
  • HP Z8 Fury G5 Workstation
  • HP Z8 Fury G5 Workstation
  • HP Z8 Fury G5 Workstation
  • HP Z8 Fury G5 Workstation

performance

LOOK BACK AT THE DUST CLOUDS

Choose 4th Gen Intel Xeon W-Series Processors with NVIDIA Quadro RTX 5000 Ada graphics, you'll be editing with power.

Plus, the NVIDIA Quadro RTX 5000 Ada offers features like real-time ray tracing for cutting-edge hyper-realistic graphics.

Intel Up to 4th Gen Intel® Xeon™ W-Series Processor
Intel
NVIDIA Up to NVIDIA® Quadro® RTX™ 6000 Ada
NVIDIA

Flame Install Procedure

  1. BIOS configuration using Autodesk's Certified BIOS configuration file
  2. Linux OS installation using Autodesk's customized distribution of CentOS
  3. DKU (Driver Kernel Utility) installation, providing automatic configuration for certified graphics cards, utility software and OS settings
  4. Network License Manager installation for environments not using a floating license server; automatic license server startup on system boot
  5. RAID configuration for Flame media storage and auto-mounting on system boot (upon request)
  6. Flame installation with necessary folder and file permissions for proper function; configuration of Flame settings to use RAID array for media storage
  7. Windows OS installation for seamless dual booting (upon request)

Certified Autodesk Flame Configurations

Flame Family Linux Certified Workstations, by Autodesk, February 2024

HP Z8 G5 Fury

  • Intel Xeon w9-3475X | 36 cores, 2.2 GHz base frequency
  • 128GB (8x 16GB) of 4800MT/s DDR5 ECC Memory
  • 1TB NVMe M.2 PCIe 4.0 Solid-State Drive
  • 2TB NVMe M.2 PCIe 4.0 Solid-State Drive
  • NVIDIA Quadro RTX 5000 Ada 32GB
  • Single HP Z8 G5 Fury 1125W Power Supply

$15,650

Configure & Buy

Dell Precision 7960 Tower

  • Intel Xeon w9-3475X | 36 cores, 2.2 GHz base frequency
  • 128GB (8x 16GB) of 4800MT/s DDR5 ECC Memory
  • 500GB NVMe M.2 PCIe 4.0 Solid-State Drive
  • 2TB NVMe M.2 PCIe 4.0 Solid-State Drive
  • NVIDIA Quadro RTX 5000 Ada 32GB

$15,550

Configure & Buy

Lenovo ThinkStation P7

  • Intel Xeon w9-3475X | 36 cores, 2.2 GHz base frequency
  • 128GB (8x 16GB) of 4800MT/s DDR5 ECC Memory
  • 500GB NVMe M.2 PCIe 4.0 Solid-State Drive
  • 2TB NVMe M.2 PCIe 4.0 Solid-State Drive
  • NVIDIA Quadro RTX 5000 Ada 32GB

$15,300

Configure & Buy

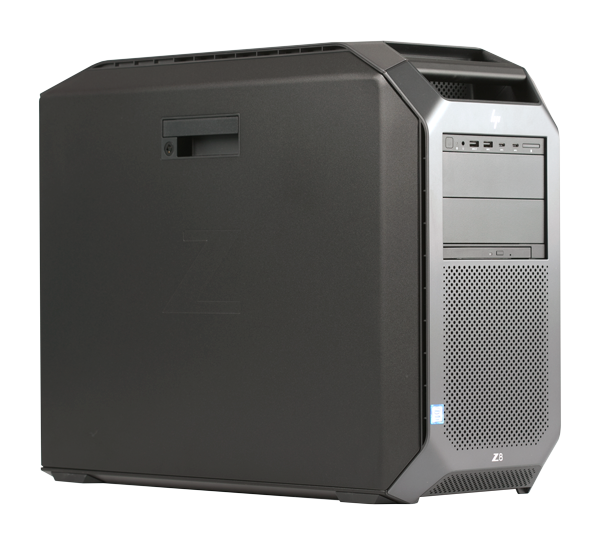

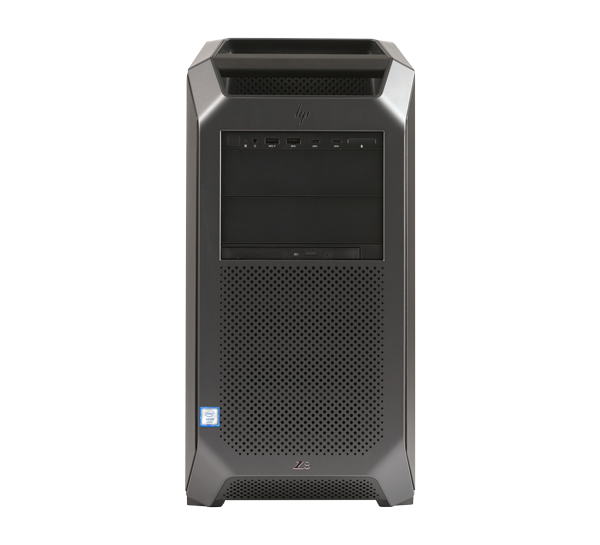

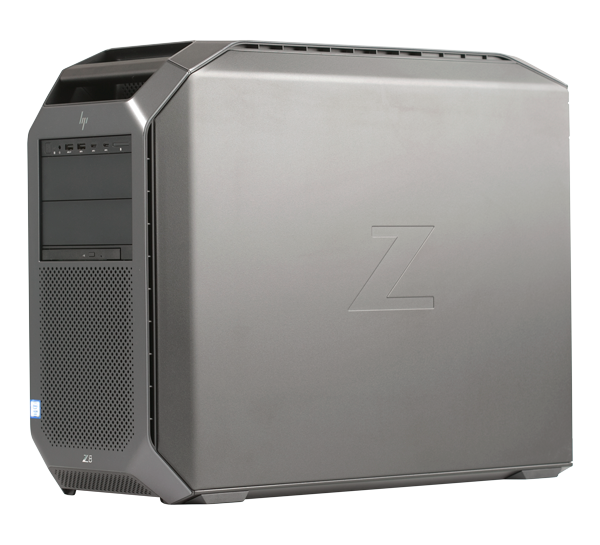

HP Z8 G4

  • Dual 16 cores, 2.9 GHz base frequency | Intel Xeon Gold 6226R
  • 192GB (12x 16GB) of 2933MT/s DDR4 ECC Memory
  • 500GB NVMe M.2 PCIe 3.0 Solid-State Drive
  • 2TB NVMe M.2 PCIe 3.0 Solid-State Drive
  • NVIDIA Quadro RTX A5000 24GB

$11,775

Configure & Buy

Dell Precision 7865

  • AMD Ryzen Threadripper PRO 5975WX | 32 cores, 3.6GHz base clock
  • 128GB (8x 16GB) of 3200MT/s DDR4 ECC Memory
  • 500GB NVMe M.2 PCIe 4.0 Solid-State Drive
  • 1TB NVMe M.2 PCIe 4.0 Solid-State Drive
  • NVIDIA Quadro RTX A5000 24GB

$10,100

Configure & Buy

Lenovo ThinkStation P620

  • AMD Ryzen Threadripper PRO 5975WX | 32 cores, 3.6GHz base clock
  • 128GB (8x 16GB) of 3200MT/s DDR4 ECC Memory
  • 500GB NVMe M.2 PCIe 4.0 Solid-State Drive
  • 1TB NVMe M.2 PCIe 4.0 Solid-State Drive
  • NVIDIA Quadro RTX A5000 24GB

$9,850

Configure & Buy

Technical
Specifications
(HP Z8 Fury G5)

Intel® Xeon™ w9-3475X Processor
36 cores, 2.2GHz base frequency, 4.8GHz turbo frequency

NVIDIA® Quadro® RTX™ A5000 graphics
24 GB of GDDR6 memory, 8,192 CUDA cores

NVIDIA® Quadro® RTX™ A6000 graphics
48 GB of GDDR6 memory, 10,752 CUDA cores

NVIDIA® Quadro® RTX™ 5000 Ada graphics
32 GB of GDDR6 memory, 12,800 CUDA cores

NVIDIA® Quadro® RTX™ 6000 Ada graphics
48 GB of GDDR6 memory, 18,176 CUDA cores

Memory DIMMs

16GB, 32GB, or 64GB DDR5 4800 ECC memory

Memory Slots

16 DIMM (2 slots per memory channel)

Rocky + Flame

512GB PCIe 4.0 NVMe M.2 Solid State Drive

Projects / Cache

1TB, 2TB, 4TB, or 8TB PCIe 4.0 NVMe M.2 Solid State Drive
Optional RAID 0 for performance

Rocky Linux 8.7 Distribution

Single 1125 watt internal power supply

Dual 1125 watt internal power supply (1125 watt in redundant mode or 2250 watt in aggregate mode)

Integrated

Dual Intel I219-LM 1Gb Ethernet

Optional

HP Z Dual 10GbE Network Module

USB Black Wired keyboard and mouse combo

2 PCIe Gen 5 x16
2 PCIe Gen 4 x16
1 PCIe Gen 3 x8
2 PCIe Gen 4 x4
1 PCIe Gen 5 x4

Front I/O

4 USB 3.2 Gen 1 Type-A
1 headphone/microphone combo
SD card reader (optional)

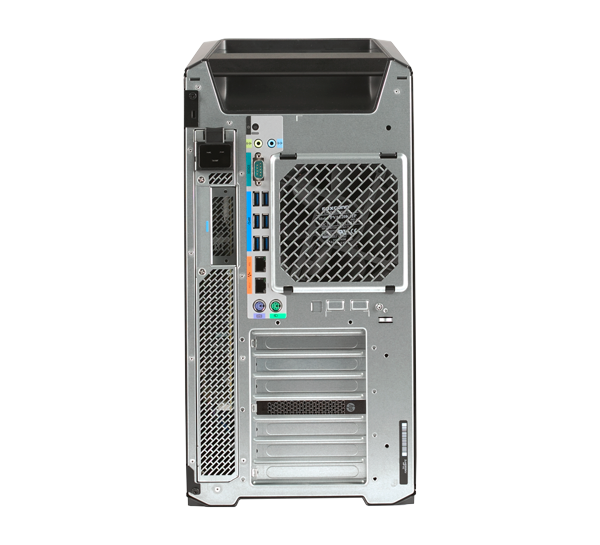

Rear I/O

6 USB 3.2 Gen 1 Type-A
2 RJ45 1Gb Ethernet
1 audio-in/out

Dimensions

21.7 in (D) x 8.5 in (W) x 17.5 in (H)

Weight

Starting at 49.6 lbs

2-year hardware warranty and support.
Additional information available at superworkstations.com/policies.
